7ME6362-2YF03-4GA3-Z A02+D01+J55

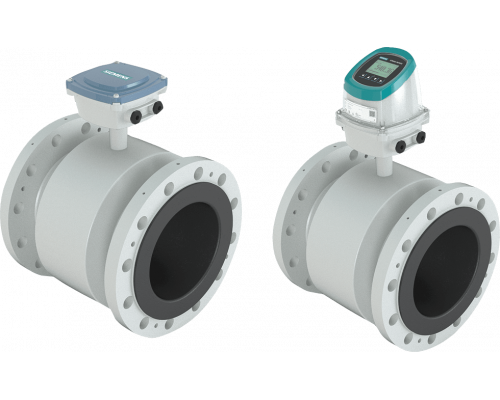

SITRANS FMS300 Magnetic flow sensor, flanged, in combination with the FMT020 it forms the system FM320 diameter DN15…2200, 1/2"…88" for measuring the volume flowrate of liquids with an electr. conductivity >5 µS/cm. Suitable for applications in the water & wastewater, mining, power generation, O&G and chemical industry. Transmitter SITRANS FMT020 DN 50, 2 inch EN 1092-1 PN 40 flanges Carbon steel ASTM A 105 flange with corrosion-resistant coating acc. to EN ISO 12944 class C4 PTFE liner Tantalum electrodes Polycarbonate housing, compact design . 100...240 V AC, 50/60 Hz M20x1.5, Polyamide, grey cable glands (2 pcs.) High accuracy factory calibration +/- 0.2% of act. Value (DN ≤ 200, ≤ 8") Tantalum grounding electrodes
